Product Details:

Payment & Shipping Terms:

Price:	Negotiable

Contact Now

Detailed Product Description

High Light:

waterproof pager

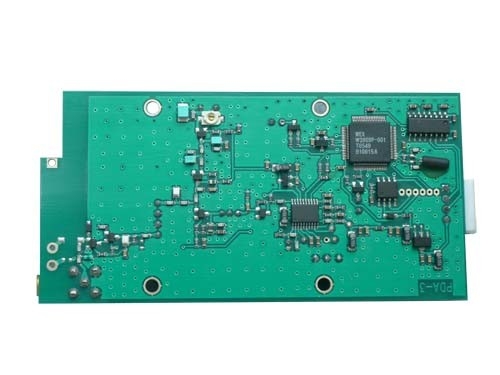

UHF receiver Model: PDA-5-TCXO SPECIFICATIONS (Version 1.0)
	Frequency	821.2375MHz
	Channel Spacing	25KHz
	Signal Format	POCSAG
	Data Transmission Rate	1200bps
	Modulation System	Carrier frequency shift keying (NRZ)
	Frequency Deviation	±4.5KHz
	Receiving Sensitivity	-122dBm (Min)
	Selectivity	55dB ±25KHz
	Co-channel rejection	≧-8dB
	Spurious Rejection	≧60dB
	Frequency Stability	±2.5ppm (-20℃ to+ 70℃)
	Average Current	16mA(max)
	Operating Voltage	+5.0V
	Operating Temp	-20℃ to +70℃
	RF input Data output Storing Temp. Humidity	50 OHM (SMA) RS232 -30℃ to +80℃, 95% (at 40℃)
RS232 FORMAT
	Baudrate :	1200 BPS
	Data bit :	8 bit
	Stop bit :	1 stop
	No check bit
